TruPro 316L stainless ADA transfer-wall grab rails in 12, 14, 16, and 18 in widths, available flanged or non-flanged.
Selected configuration
Part TTR-NF12-461 · SKU TTR-NF12-461
Changing the configuration updates the exact values, imagery, files, and compatibility context below.
Files for 12 in no flange
Configuration-specific files are listed first.
TTR-NF12-461-ADA-Transfer-Grab-Rail-without-Flange-12-x-1.50-OD-x-0.120-WALL-316LSS-Specification.pdf
Specification · PDF · This configuration
Manual
Manual · PDF · This configuration
Custom-ADA-Transfer-Grab-Rails-Fillable-Project-Form.pdf
Other · PDF · All configurations
Technical specifications
Configuration-specific values are separated from the product-wide specification, so important family data never disappears behind a disclosure.
56 visible fields
Selected configuration
Product-wide specification
Configuration comparison
Use this when you need to compare configurations. The main technical specification above remains the primary product record.
8 of 8 configurations
| Configuration | Model Number | Manufacturer Internal Part Number | Mounting Type | Transfer Wall Width | Resources |
|---|---|---|---|---|---|
| TTR-NF12-461 | INV03750 | non-flanged anchor-sleeve mount | 12 in | 5 | |
| TTR-NF14-461 | INV03751 | non-flanged anchor-sleeve mount | 14 in | 5 | |
| TTR-NF16-461 | INV03752 | non-flanged anchor-sleeve mount | 16 in | 5 | |
| TTR-NF18-461 | INV03753 | non-flanged anchor-sleeve mount | 18 in | 5 | |
| TTR-FG12-461 | INV03755 | flanged surface mount | 12 in | 5 | |
| TTR-FG14-461 | INV03756 | flanged surface mount | 14 in | 5 | |
| TTR-FG16-461 | INV03757 | flanged surface mount | 16 in | 5 | |
| TTR-FG18-461 | INV03758 | flanged surface mount | 18 in | 5 |
Documents
Configuration-specific files appear first. Product-wide documents remain available because they apply across the family.
5 applicable documents
TTR-NF12-461-ADA-Transfer-Grab-Rail-without-Flange-12-x-1.50-OD-x-0.120-WALL-316LSS-Specification.pdf
Specification · PDF
Specification
This configuration
Manual
RestrictedManual · PDF
Manual
This configuration
Custom-ADA-Transfer-Grab-Rails-Fillable-Project-Form.pdf
Other · PDF
Other
All configurations
System context
Manufacturer
Aqua Creek Products
Missoula, MT

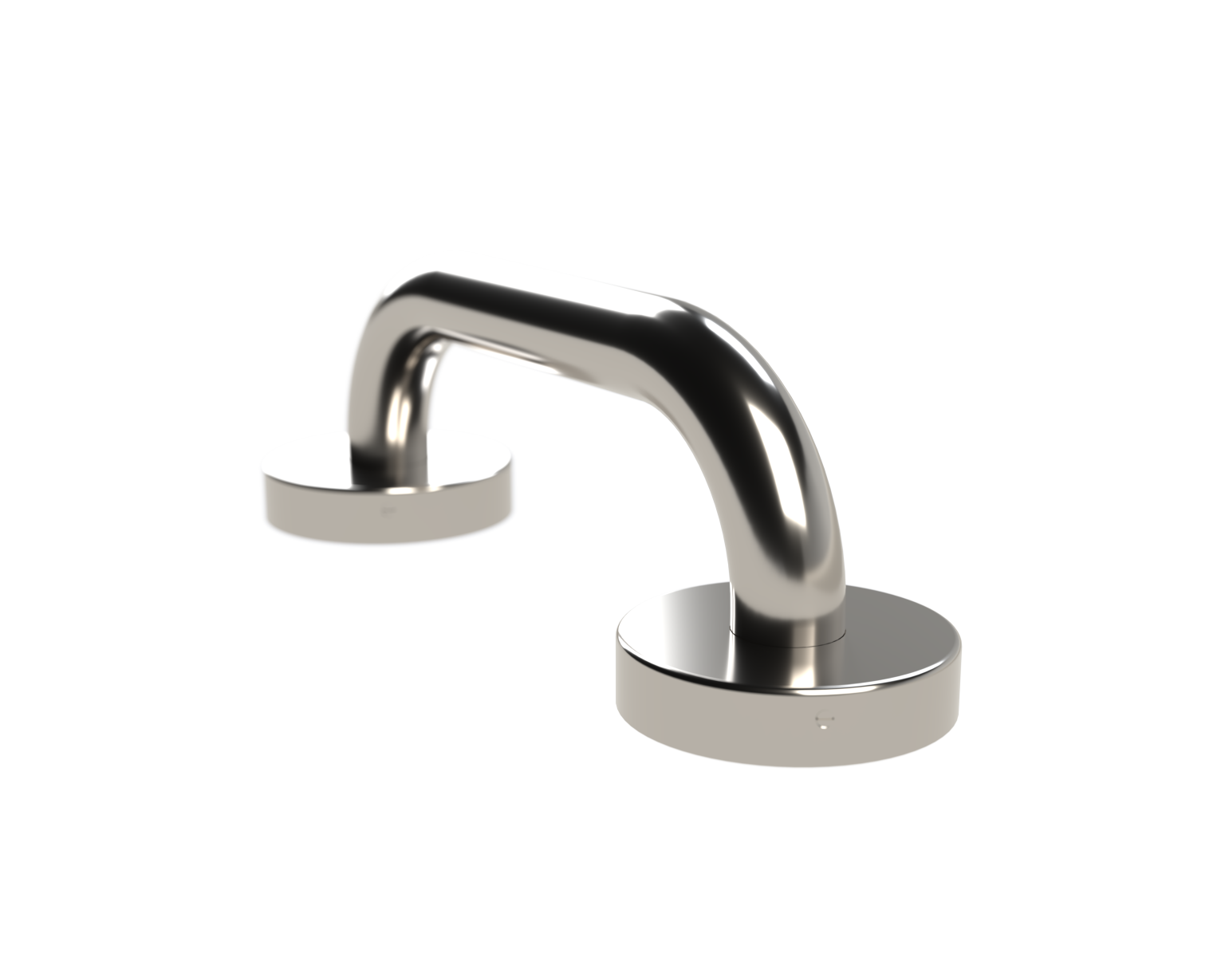

Aqua Creek TruPro ADA Transfer Grab Rails provide a stable handhold for swimmers transferring from elevated pool transfer walls. Standard configurations are offered for 12, 14, 16, and 18 in transfer-wall widths, with flanged surface-mount and non-flanged anchor-sleeve mounting options. Standard construction is 1.50 in OD x 0.120 in wall 316L marine-grade stainless steel with a near #7 / 600-grit polished finish. The rails are designed for indoor or outdoor aquatic environments and to meet U.S. ADA Standards for Accessible Design when installed using the specified mounting hardware.
