Manufacturer

Fluidtrol Process Technologies, Inc.Huntsville, Alabama

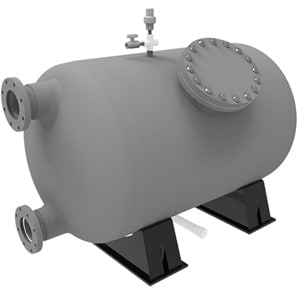

HSF Type C Horizontal Sand Filter

Horizontal fiberglass sand filters with parallel inflow/outflow connections on the same side.

HSF-CEquipment4 configurations3 document entries across product family

Product-family image · exact configuration not pictured

Selected configuration

FPT-HSF42H72C

Choose configuration

Changing the configuration updates the exact values, imagery, files, and compatibility context below.

Model Number: FPT-HSF42H72C
Filter Area: 19.77 sq ft
Operating Weight: 2,670.7 lb
Nominal Connection Designation: 6 in nominal
Rated Flow and Filtration-Rate Basis: 395 US gpm at 20 US gpm/ft² filtration rate
Drawing Length A: 76.75 in

Configuration documents and family resources

Configuration-specific documents first; family resources require applicability review.

0 configuration-specific · 3 product-family

HSF-C · Specification

PDF · Restricted · Product family · verify applicability

HSF-C · Manual

PDF · Restricted · Product family · verify applicability

HSF-C · Technical resource

Restricted · Product family · verify applicability

View document details

Technical specifications Documents Compare configurations

Missing a project-critical value? Ask the manufacturer.

Manufacturer suppliedUpdated Oct 30, 20260 configuration-specific · 3 product-familyVerify project-critical values before construction or procurement.

Product overview

Where it’s used and what it does

The Type C HSF arrangement places parallel inflow and outflow connections on the same side.

The four listed configurations are individually included in the NSF/ANSI 50 listing for high-rate sand filters, with a listed filtration-rate range of 5–20 US gpm/ft². Use the configuration-specific source drawing to distinguish Types A, B and C.

11 published fields

Selected configuration

FPT-HSF42H72C

Values that can change by configuration

Identity

Model Number: FPT-HSF42H72C

Connections

Nominal Connection Designation: 6 in nominal

Hydraulics

Filter Area: 19.77 sq ft

Performance

Rated Flow and Filtration-Rate Basis: 395 US gpm at 20 US gpm/ft² filtration rate

Dimensions

Drawing Length A: 76.75 in
Drawing Length B: 34.75 in
Published Vessel Dimensions: 42 in × 72 in

Media

Media Loading: Gravel: 8.9 ft³; Sand: 19.8 ft³

Materials

Construction Material: Fiberglass

Weights

Operating Weight: 2,670.7 lb

Certifications

Certifications: NSF/ANSI 50 — listed model; pool use; design filtration rate 5–20 US gpm/ft²

Configuration comparison

Compare what actually changes

Use this when you need to compare configurations. The main technical specification above remains the primary product record.

4 of 4 configurations

Model Number	Filter Area	Operating Weight	Resources
FPT-HSF42H72C	19.77 sq ft	2,670.7 lb	0 configuration-specific · 3 product-family
FPT-HSF42H96C	26.77 sq ft	3,305 lb	0 configuration-specific · 3 product-family
FPT-HSF42H120C	33.77 sq ft	3,949.3 lb	0 configuration-specific · 3 product-family
FPT-HSF42H144C	40.77 sq ft	4,583.6 lb	0 configuration-specific · 3 product-family
