Low-profile in-line fiberglass-reinforced plastic (FRP) strainers for aquatic circulation and plant-room layouts.
Selected configuration
Changing the configuration updates the exact values, imagery, files, and compatibility context below.
Configuration documents and family resources
Configuration-specific documents first; family resources require applicability review.
LP · Specification
PDF · Restricted · Product family · verify applicability
LP · Technical resource
PDF · Restricted · Product family · verify applicability
Product overview

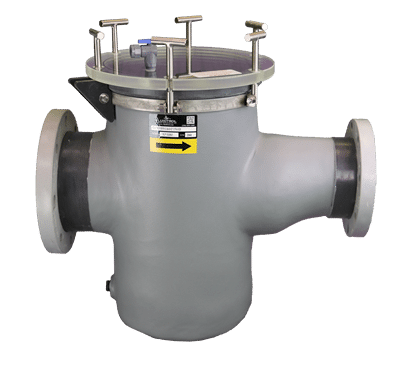

The LP series provides an in-line FRP basket-strainer arrangement with a lower-profile geometry.
Model-specific published dimensions, basket data and pressure-loss resources support layout review. Use the manufacturer performance information for the selected model and operating conditions.
8 published fields
Selected configuration
Configuration comparison
Use this when you need to compare configurations. The main technical specification above remains the primary product record.
9 of 9 configurations
| Configuration | Nominal Connection Designation | Drain Connection Designation | Model Number | Weight | Resources |
|---|---|---|---|---|---|
| 2 | ½ NPT | LP116302031 | 23 lb | 0 configuration-specific · 2 product-family | |
| 3 | ½ NPT | LP116303031 | 24 lb | 0 configuration-specific · 2 product-family | |
| 4 | ½ NPT | LP116304031 | 28 lb | 0 configuration-specific · 2 product-family | |
| 6 | ¾ NPT | LP116306031 | 39 lb | 0 configuration-specific · 2 product-family | |
| 8 | ¾ NPT | LP116308031 | 57 lb | 0 configuration-specific · 2 product-family | |
| 10 | 1 NPT | LP116310031 | 78 lb | 0 configuration-specific · 2 product-family | |
| 12 | 1 NPT | LP116312031 | 122 lb | 0 configuration-specific · 2 product-family | |
| 14 | 1 NPT | LP116314031 | 145 lb | 0 configuration-specific · 2 product-family |
Documents
Configuration-specific documents are assigned to this selection. Product-family resources are listed separately by scope; verify their applicability before using them for this configuration. Similar titles may represent different file formats or resource assignments.
0 configuration-specific · 2 product-family
LP · Specification
PDF · Restricted
Product family · verify applicability
LP · Technical resource
PDF · Restricted
Product family · verify applicability
