Manufacturer

Aqua Creek ProductsMissoula, MT

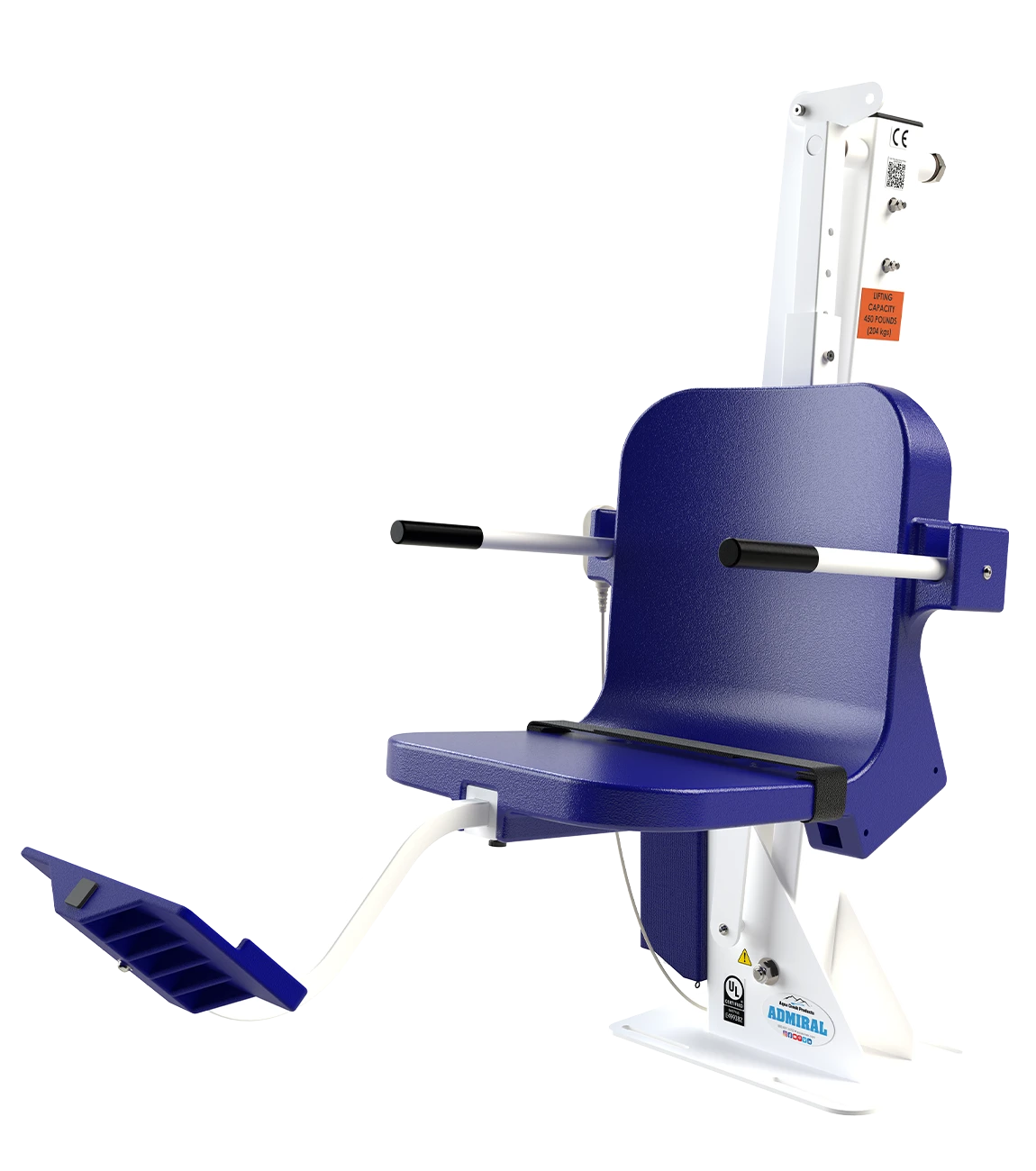

Admiral

ADA-compliant, UL-certified 450 lb non-rotating pool and spa lift for in-ground applications.

F-ADMRLPool Lift5 configurations38 product-wide fields17 technical documents

Selected configuration

White/Blue

Part F-ADMRL · SKU F-ADMRL

Choose configuration

Changing the configuration updates the exact values, imagery, files, and compatibility context below.

Color: White/Blue
Manufacturer Internal Part Number: INV01513

Files for White/Blue

Configuration-specific files are listed first.

17 applicable

F-046QAB-AT1-Pro-Pool-Series-Quick-Attach-Concrete-Deck-Anchor-Specification.pdf

Specification · PDF · All configurations

Preview

F-04AAA-Pro-Pool-Series-Anchor-Adapter-Plate-Pre-AT1-Specification.pdf

Specification · PDF · All configurations

Preview

F-04CAJP-Pro-Pool-Series-Standard-Concrete-Deck-Anchor-Specifications.pdf

Specification · PDF · All configurations

Preview

See 14 more applicable filesFull list below

Technical specifications Documents Compare configurations

Missing a project-critical value? Ask the manufacturer.

Manufacturer suppliedUpdated Sep 14, 202638 structured product fields17 applicable documentsVerify project-critical values before construction or procurement.

Technical specifications

Core product data stays visible

Configuration-specific values are separated from the product-wide specification, so important family data never disappears behind a disclosure.

40 visible fields

Selected configuration

White/Blue

Values that can change by configuration

Configuration

Color: White/Blue
Manufacturer Internal Part Number: INV01513

Product-wide specification

Applies across the product family

38 published fields

Classification

Equipment Type: pool lift
Product Line: Pro Pool Series
Supported Applications: in-ground pools, spas

Dimensions & Capacity

Weight Capacity: 450 lb
Minimum Setback: 14.5 in
Application Setback Range: 14.5 to 19 in
Technical Drawing Setback Range: 13.75 to 20.75 in
Maximum Setback: 19 in
Overall Height: 63.75 in
Overall Width: 26.438 in
Approximate Weight: 117.07 lb
Anchor Required: Yes
Field Reversible: Yes
Adjustable Base Plate: Yes
Adjustable Seat Height: Yes
Seat Width: 18 in
Seat Depth: 17 in
Seat Height Adjustment Range: 6 in
Seat Height Adjustment Increment: 2 in

Operation

Non-Rotating Design: Yes
Battery Voltage: 24 V
Rechargeable Battery: Yes
Wall-Mount Charger Included: Yes

Construction

Construction Material: stainless steel
Material Grade: 304 stainless steel
Finish: powder coat

Safety & Compliance

ADA Compliant: Yes
UL Safety Certified: Yes
Flip-Up Armrest: Yes
Seat Belt Included: Yes
Adjustable Footrest: Yes

Installation

Anchor System: four-point
Anchor Included: No
Compatible Anchor Models: F-04CAJP, F-046QAB-AT1, F-08CAJP, F-40220-AT1, F-PPEBP, F-PPEBP90, F-UAPPS, F-04AAA

General

Limited Warranty: 5 year
Structural Warranty: 5 year
Electronics Warranty: 5 year
Made in USA: Yes

Configuration comparison

Compare what actually changes

Use this when you need to compare configurations. The main technical specification above remains the primary product record.

5 of 5 configurations

Color	Manufacturer Internal Part Number	Resources
White/Blue	INV01513	17
White/Tan	INV01757	17
White/Gray	INV01756	17
White/Granite White	INV01755	17
Custom	INV01907	17

Documents

Resources for White/Blue

Configuration-specific files appear first. Product-wide documents remain available because they apply across the family.

17 applicable documents

F-046QAB-AT1-Pro-Pool-Series-Quick-Attach-Concrete-Deck-Anchor-Specification.pdf

Specification · PDF

Specification

All configurations

Preview Download

F-04AAA-Pro-Pool-Series-Anchor-Adapter-Plate-Pre-AT1-Specification.pdf

Specification · PDF

Specification

All configurations

Preview Download

F-04CAJP-Pro-Pool-Series-Standard-Concrete-Deck-Anchor-Specifications.pdf

Specification · PDF

Specification

All configurations

Preview Download

F-08CAJP-Pro-Pool-Series-Paver-Deck-Anchor-Specification.pdf

Specification · PDF

Specification

All configurations

Preview Download

F-40220-AT1-Pro-Pool-Series-Wood-Deck-Anchor-Specification.pdf

Specification · PDF

Specification

All configurations

Preview Download

F-ADMRL-Admiral-Lift-Specification.pdf

Specification · PDF

Specification

All configurations

Preview Download

F-PPEBP90-Pro-Pool-Series-90°-Bolt-Pattern-Rotation-Anchor-Extension-Setback-Plate-Specification.pdf

Specification · PDF

Specification

All configurations

Preview Download

F-UAPPS-Pro-Pool-Series-Universal-Anchor-Adapter-Plate-Specification.pdf

Specification · PDF

Specification

All configurations

Preview Download

Manual

Restricted

Manual · PDF

Manual

All configurations

Manual

Restricted

Manual · PDF

Manual

All configurations

System context

Manufacturer

Aqua Creek Products

Missoula, MT

View manufacturer profile Manufacturer website

Aqua Creek Admiral Pro Pool Series lift with 450 lb capacity, adjustable seat height, field-reversible configuration, and four-point anchoring options for in-ground pools and spas.
