TruPro deck-mounted three-bend stainless pool-access rail in 48 or 60 in widths with 304L or 316L options, multiple wedge/channel anchors, and ADA-compliant installation when specified anchors are used.
Selected configuration
Part TDM-3B48-141 · SKU TDM-3B48-141
Changing the configuration updates the exact values, imagery, files, and compatibility context below.
Files for 48 in / 1.90 OD / 0.065 wall / 304LSS
Configuration-specific files are listed first.
TDM-3B48-141-3-Bend-Deck-Rail-48-x-1.90-OD-x-0.065-WALL-304LSS-Specification.pdf
Specification · PDF · This configuration
Manual
Manual · PDF · All configurations
Custom-Deck-Rails-Fillable-Project-Form.pdf
Other · PDF · All configurations
Technical specifications
Configuration-specific values are separated from the product-wide specification, so important family data never disappears behind a disclosure.
57 visible fields
Selected configuration
Product-wide specification
Configuration comparison
Use this when you need to compare configurations. The main technical specification above remains the primary product record.
6 of 6 configurations
| Configuration | Manufacturer Internal Part Number | Total Width | Design Setback | Outside Diameter | Resources |
|---|---|---|---|---|---|
| INV03732 | 48 in | 48 in | 1.9 in | 5 | |
| INV03733 | 48 in | 48 in | 1.9 in | 5 | |
| INV03731 | 48 in | 48 in | 1.5 in | 5 | |
| INV03735 | 60 in | 60 in | 1.9 in | 5 | |
| INV03736 | 60 in | 60 in | 1.9 in | 5 | |
| INV03734 | 60 in | 60 in | 1.5 in | 5 |
Documents
Configuration-specific files appear first. Product-wide documents remain available because they apply across the family.
5 applicable documents
TDM-3B48-141-3-Bend-Deck-Rail-48-x-1.90-OD-x-0.065-WALL-304LSS-Specification.pdf
Specification · PDF
Specification
This configuration
Manual
RestrictedManual · PDF
Manual
All configurations
System context
Manufacturer
Aqua Creek Products
Missoula, MT

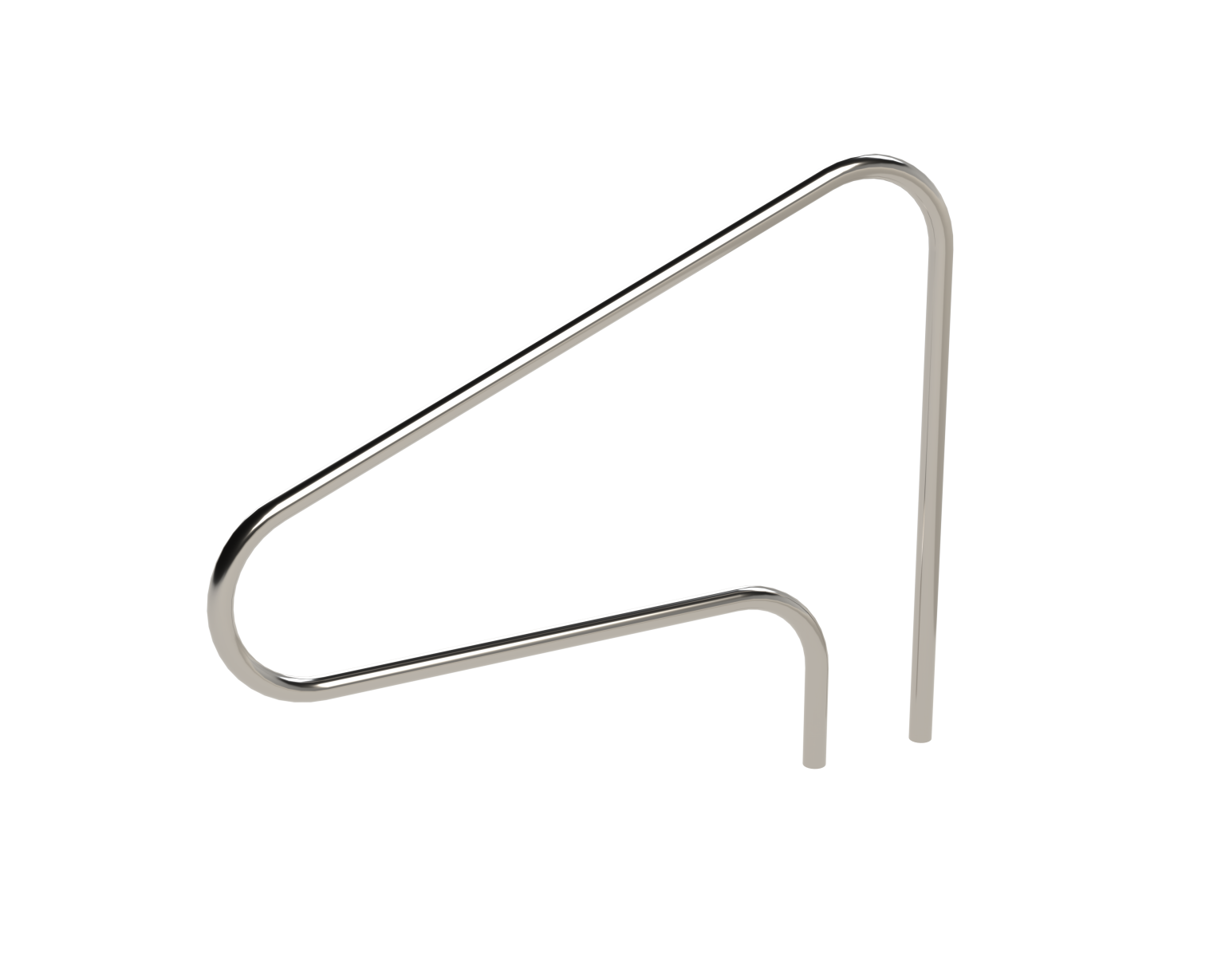

Aqua Creek TruPro Deck Mounted 3 Bend Rail is a corrosion-resistant stainless steel pool-access handrail with a smooth three-bend contour that extends over the pool edge to place a secure handhold where swimmers enter and exit. The deck-mounted geometry is intended for wide coping, built-in steps, and retrofit applications in residential and commercial aquatic environments. Standard configurations are offered in 48 and 60 in total widths with 1.90 in 304L stainless or 1.50 in 316L marine-grade stainless tubing. Standard installation uses 36 in rail height, 8 in anchor spacing, and diameter-matched wedge or channel anchors. Anchors and escutcheons are sold separately.
